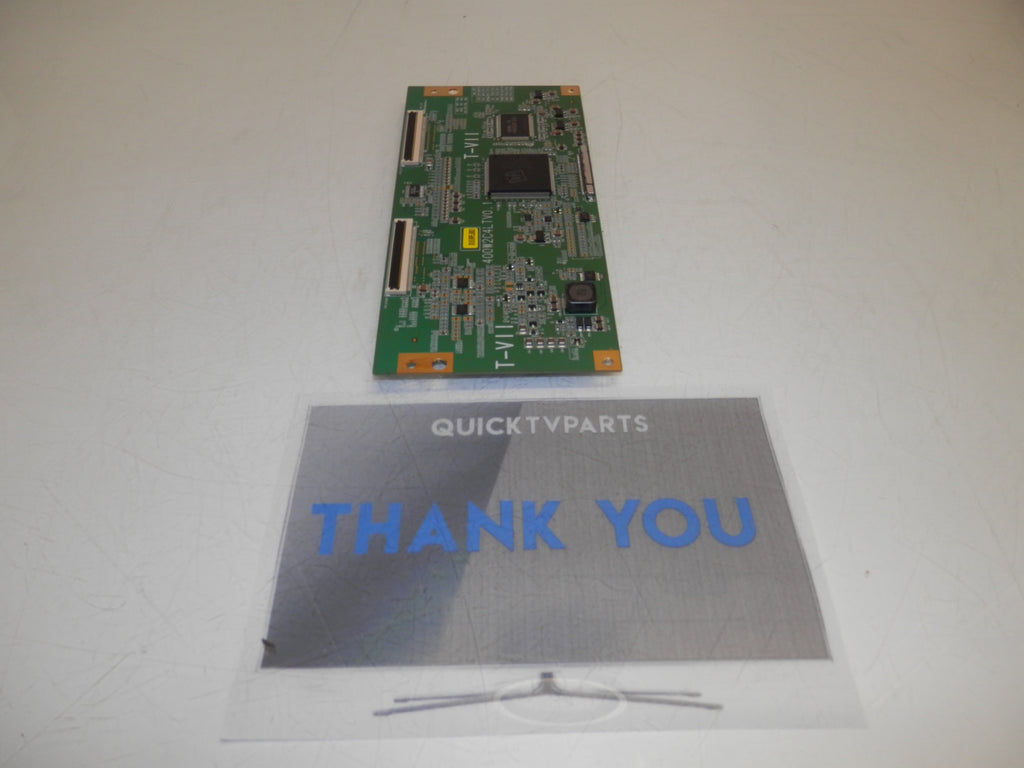

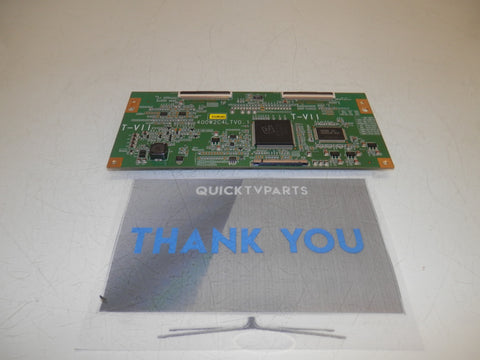

Samsung LNR408DX/XAA LJ94-01018A (400W2C4LTV0.1, T-V11) T-Con Board
Samsung LNR408DX/XAA LJ94-01018A (400W2C4LTV0.1, T-V11) T-Con Board
Part Type: T-Con Board, LCD Controller, Control Board, CTRL Board, Timing Control
Part Number: LJ94-01018A
Board Number(s): 400W2C4LTV0.1, T-V11
Substitute Parts: LJ94-00701F
LJ94-07016T
Panel Sticker Number: LTA400W2-L01
Panel Manufacturer: Samsung
Brands: Humax, Olevia, Pyle, Samsung, Viewsonic, Westinghouse

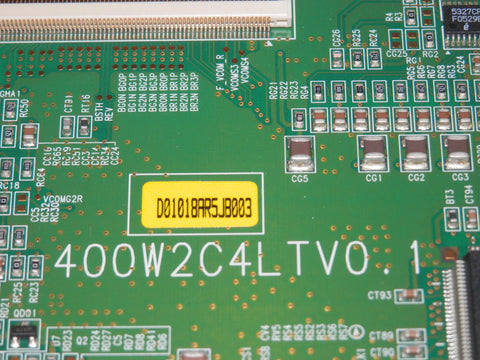

Important Message: Partial part number (1018A) can be found stamped on the board.
IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).
TV Part Types: T-Con
TV Models:
Humax
LGB-40TPVR
Westinghouse
LTV-40W1HDC
Viewsonic
VS10846-1M
VS10846-1E
N4060W
N3760V
Samsung
LNR408DX/XAA
LE40R51BX/XEU
400P
Olevia
540-B11
Pyle
PTC40LC
ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
VERY IMPORTANT:
Please were not a guess / testing store if your not sure contact us, TV is shown working in pics so no returns for "DEFECTIVE/NOT WORKING".
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.
Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.
Please see all of the high-res photos for details!
