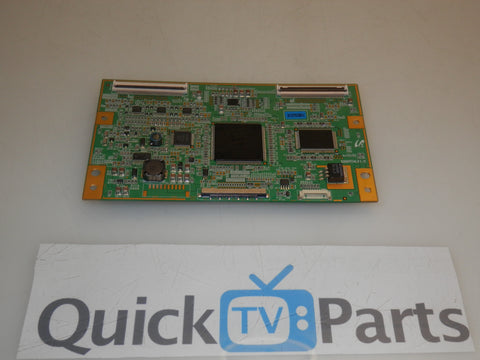

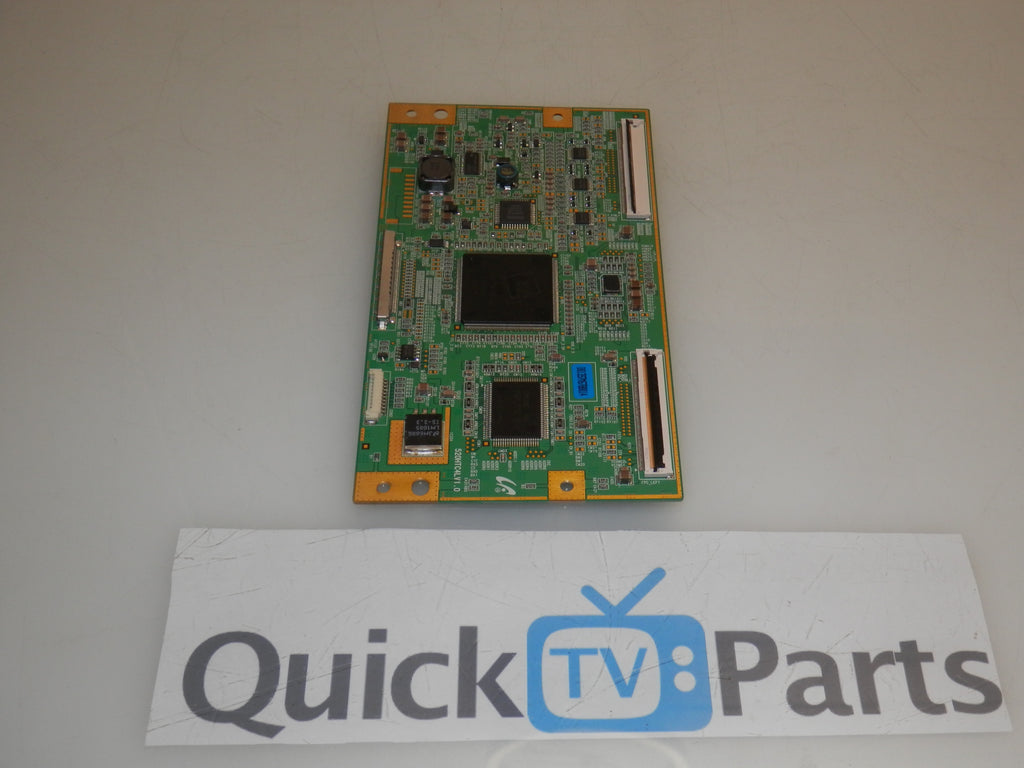

Samsung LNS5296DX/XAA LJ94-01397M T-Con Board
Samsung LNS5296DX/XAA LJ94-01397M T-Con Board
Part Type: T-Con Board, LCD Controller, Control Board, CTRL Board, Timing Control
Part Number: LJ94-01397M
Board Number(s): 520HTC4LV1.0
Substitute Parts: BN81-02340A
Panel Sticker Number: LTA520HA03
Panel Manufacturer: Samsung
Brands: Samsung
Important Message: Partial part number (1397M) can be found on the sticker.
TV Part Types: T-Con
TV Models:
Samsung
LNS5296DX/XAA
ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
VERY IMPORTANT:
Please were not a guess / testing store if your not sure contact us, TV is shown working in pics so no returns for "DEFECTIVE/NOT WORKING".
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.
Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.
Please see all of the high-res photos for details!
