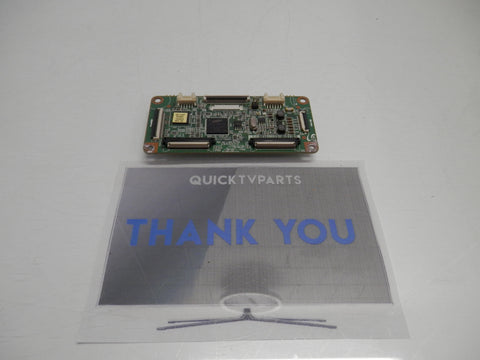

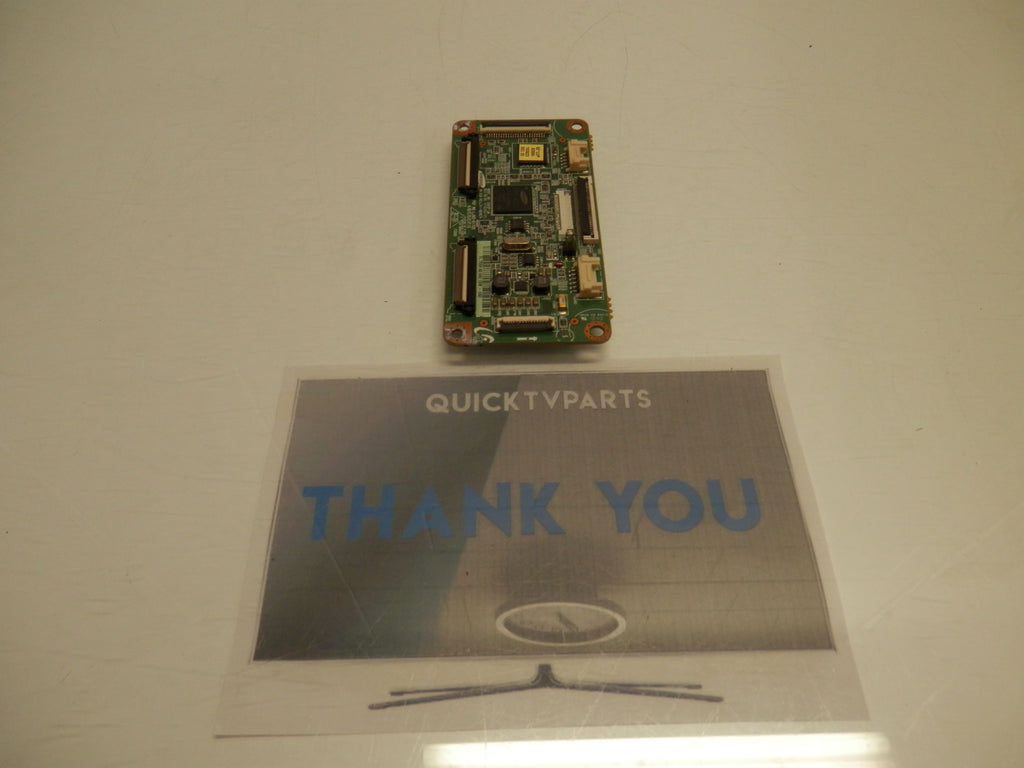

Samsung PN50C450B1DXZA LJ92-01705H Main Logic CTRL Board
Samsung PN50C450B1DXZA LJ92-01705H Main Logic CTRL Board
Part Type: Main Logic CTRL Board, Control Board, Logic Main, CTRL Board
Part Number: LJ92-01705H
Part Usage: Plasma
Panel Sticker Number: S50HW-YD13, S50HW-YB06
Panel Manufacturer: Samsung
PCB Number: LJ41-08387A
PBA Number: LJ92-01705H
Brands: Insignia, Samsung
Important Message: Partial PBA number (705H) can be found on the sticker.
TV Part Types: Logic Board
TV Models:
Insignia
NS-50P650A11
Samsung
PN50C450B1DXZA NY02

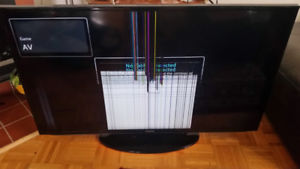

ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
VERY IMPORTANT:
Please were not a guess / testing store if your not sure contact us, TV is shown working in pics so no returns for "DEFECTIVE/NOT WORKING".
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.
Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.
Please see all of the high-res photos for details!
