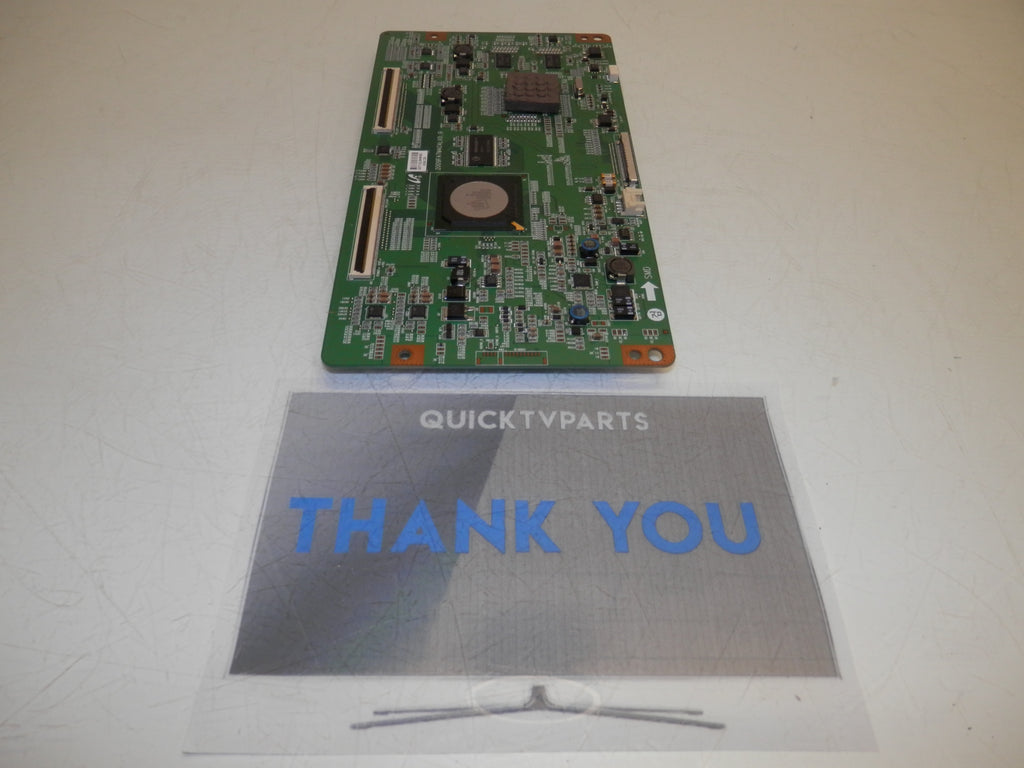

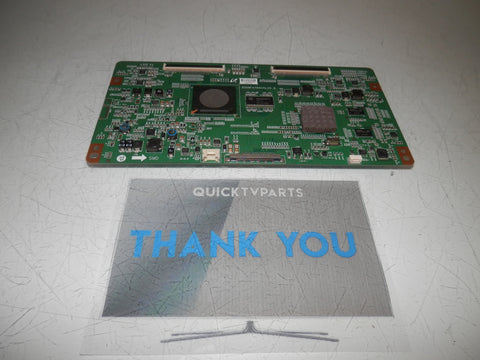

Samsung UN55B6000VFXZA BN81-02362A, LJ94-02719K, LJ94-02719L (2009FA7M4C4LV0.9) T-Con Board
Samsung UN55B6000VFXZA BN81-02362A (2009FA7M4C4LV0.9) T-Con Board
Part Type: T-Con Board, LCD Controller, Control Board, CTRL Board, Timing Control
Part Number: BN81-02362A
Part Usage: LCD
MFR Part Number 1: Samsung BN81-02362A
Board Number(s): 2009FA7M4C4LV0.9
Substitute Parts: LJ94-02719K, LJ94-02719L, LJ94-02845A, LJ94-02850B, LJ94-02851C, LJ94-02851D, LJ94-02851E, LJ94-02852F, LJ94-02852G, LJ94-02853C, LJ94-02853D, LJ94-02863B, LJ94-02859A, LJ94-02860A, LJ94-02852D, LJ94-02860B, LJ94-02859B, LJ94-03155A, LJ94-02852C, LJ94-02853F
Panel Sticker Number: LTF550HF04-A01
Panel Manufacturer: Samsung
Notes, Comments & Additional Information: QUICK TV PARTS recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Brands: Samsung
Important Message: LJ94-02719J Partial part number (2719J) can be found on the sticker.
IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).
TV Part Types: T-Con
TV Models:
Samsung
UN55B7000WFXZA
UN55B6000VFXZA
UN55B7000WFXSR SQ01
UN55B7000WFXSR 0001
UN55B7000WFXZP SQ01
UN55B7000WFXZP 0001
UN55B7000WFXZX SQ01
UN55B7000WFXZX 0001
UN55B7000WMXZB SQ01
UN55B7000WMXZD SQ01
UN55B7000WMXZD 0001
UN55B7100WFXZA
ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
VERY IMPORTANT:
Please were not a guess / testing store if your not sure contact us.
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.

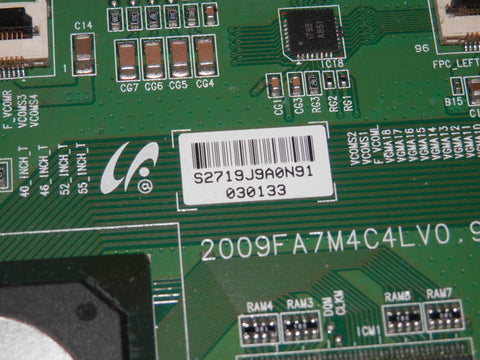

Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.
Please see all of the high-res photos for details!
