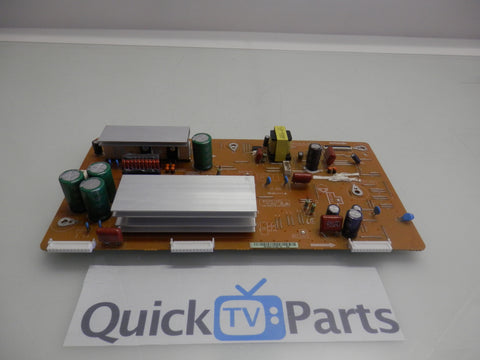

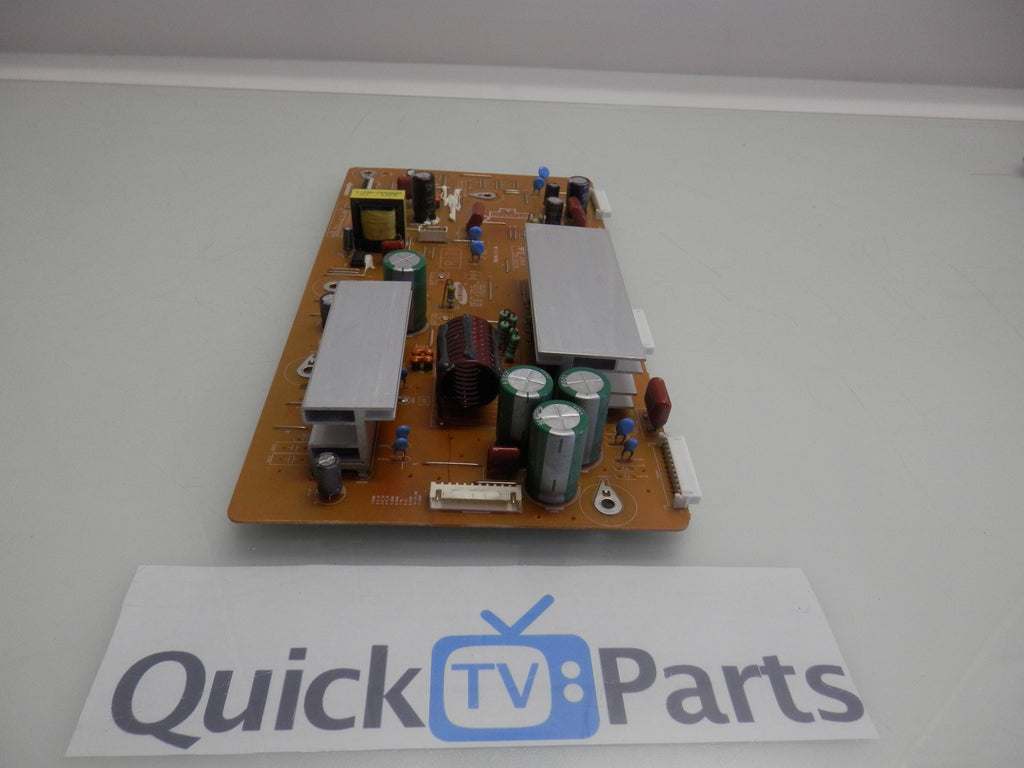

Samsung BN96-22091A (LJ92-01854A/B/D) X/Y-Main BoarD
Part Number: BN96-22091A
Part Usage: Plasma
MFR Part Number 1: Samsung BN96-22091A
Substitute Parts: LJ92-01854B
Panel Sticker Number: S43AX-YD01, S42AX-YB01
Panel Manufacturer: Samsung

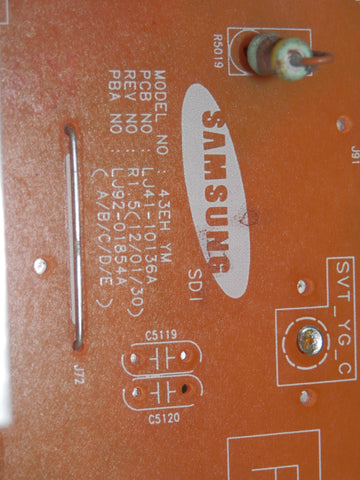

PCB Number: LJ41-10136A
PBA Number: LJ92-01854A
Important Message: LJ92-01854A Partial part number (854A or 0854B or 854D) can be found on the sticker on board.
TV Part Types: X/Y-Sustain
PN43E440A2FXZA PN43E450A1FXZA TS02
ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
Please were not a guess / testing store if your not sure contact us, TV is shown working in pics so no returns for "DEFECTIVE/NOT WORKING".
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.

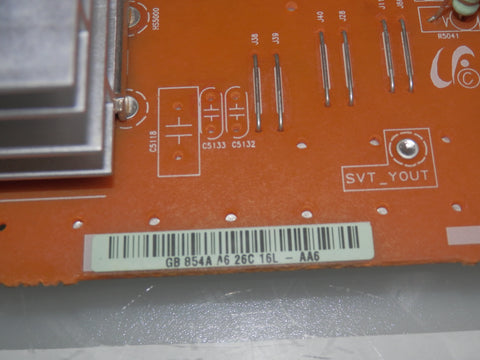

Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.
Please see all of the high-res photos for details!
