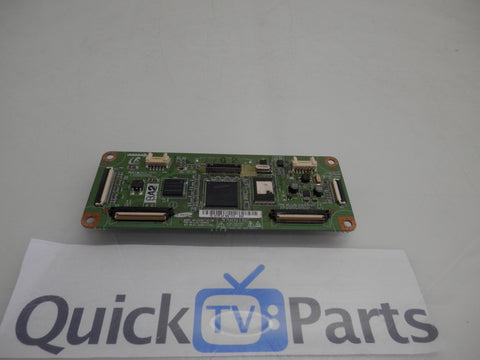

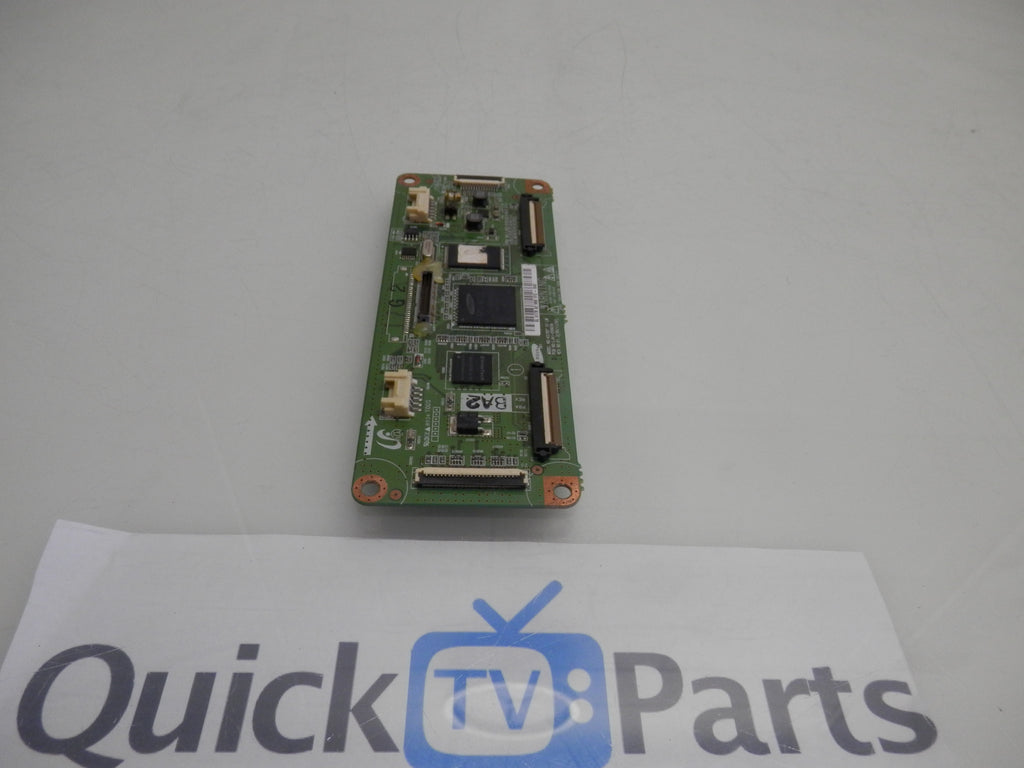

Samsung DP50749 P50749-00 LJ92-01617B Main Logic CTRL Board
Part Type: Main Logic CTRL Board, Control Board, Logic Main, CTRL Board
Part Number: LJ92-01617B
Part Usage: Plasma
REV Number: BA1, BA2
Panel Sticker Number: S50HW-YB04, S50HW-YD11
Panel Manufacturer: Samsung
PCB Number: LJ41-05903A
PBA Number: LJ92-01617B
Notes, Comments & Additional Information: QUICK TV PARTS recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Partial PBA number (617B) can be found on the sticker.
TV Part Types: Logic Board
ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
Please were not a guess / testing store if your not sure contact us, TV is shown working in pics so no returns for "DEFECTIVE/NOT WORKING".
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.

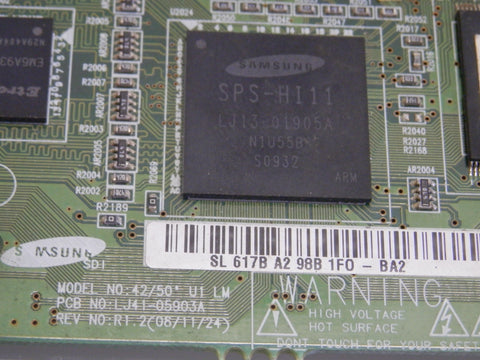

Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.
Please see all of the high-res photos for details!
