Samsung LNS3238DX/XAA LJ94-01602B (320WTC4LV1.0) T-Con Board
Samsung LNS3238DX/XAA LJ94-01602B (320WTC4LV1.0) T-Con Board
Part Type: T-Con Board, LCD Controller, Control Board, CTRL Board, Timing Control
Part Number: LJ94-01602B
Board Number(s): 320WTC4LV1.0
Panel Sticker Number: LTA320WT-L16 BN07-00368A
Panel Manufacturer: Samsung
Notes, Comments & Additional Information:QUICK TV PARTS recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Brands: Samsung
Important Message: Partial part number (1602B) can be found on the sticker.
IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).
TV Part Types: T-Con
TV Models:
Samsung
LN32B530P7FXZA
LNS3238DX/XAA
LNS3251DX/XAA
ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
VERY IMPORTANT:
Please were not a guess / testing store if your not sure contact us, TV is shown working in pics so no returns for "DEFECTIVE/NOT WORKING".
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.

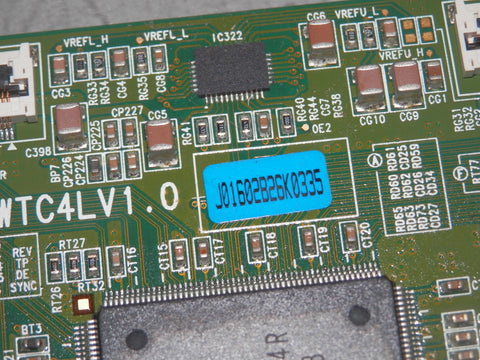

Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.

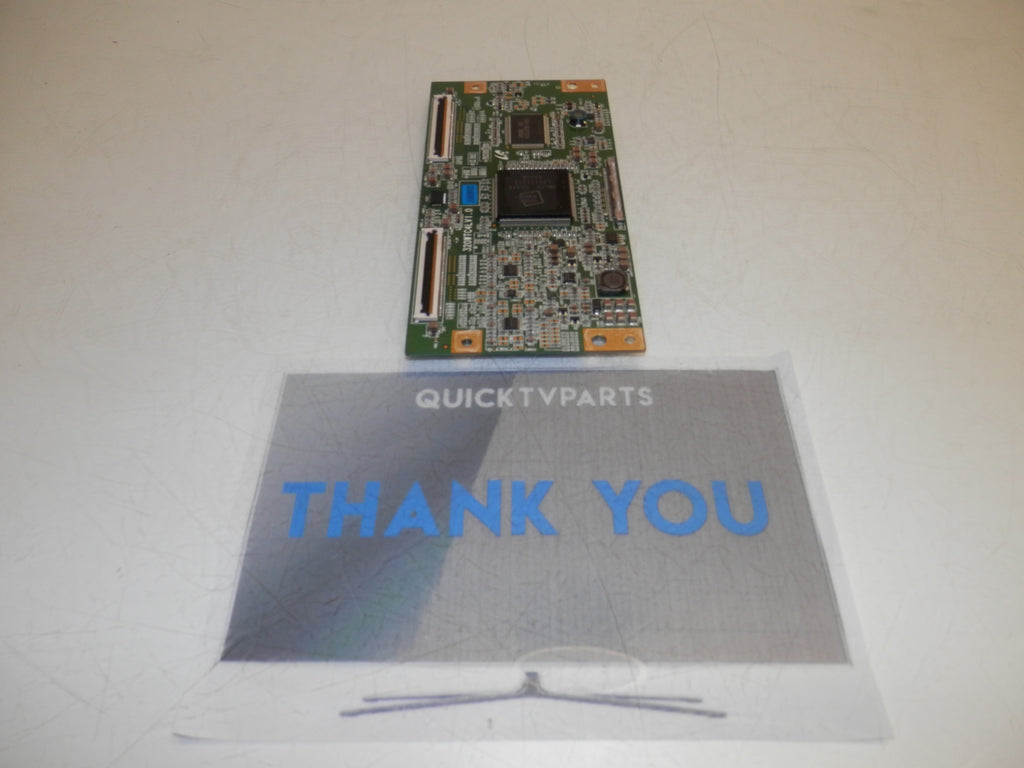

Please see all of the high-res photos for details!
