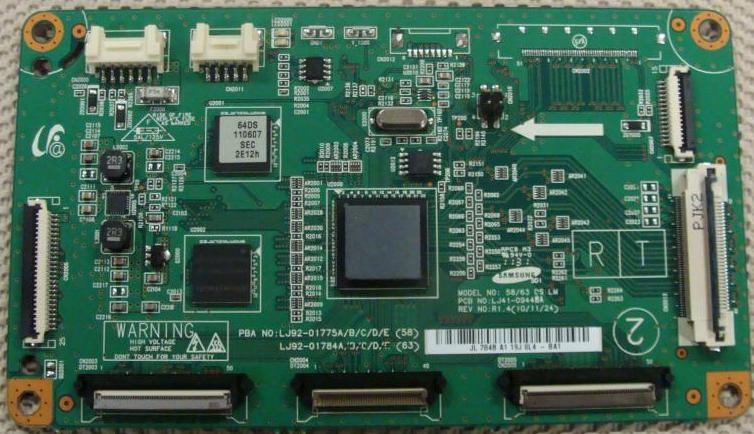

SAMSUNG PN64D8000, LJ92-01784B MAIN LOGIC CONTROL BOARDCAME
Part Type Main Logic CTRL Board
Control Board
Logic Main
Part Number LJ92-01784B
Known Models SAMSUNG PN64D550C1FXZA
SAMSUNG PN64D7000FFXZA
SAMSUNG PN64D8000FFXZA
TV Panel Model S63FH-YB06
TV Panel Manufacturer Samsung
PCB Number LJ41-09448A
PBA Number LJ92-01784B
Samsung
PN64D550C1FXZA
PN64D7000FFXZA
PN64D8000FFXZA
ALL PARTS WERE REMOVED FROM A WORKING, TESTED TV WITH A CRACKED SCREEN. SOME WERE STILL NEW IN THERE ORIGINAL BOX AND SOME WERE NOT.
VERY IMPORTANT:
Please were not a guess / testing store if your not sure contact us, TV is shown working in pics so no returns for "DEFECTIVE/NOT WORKING".
Horizontal lines on the screen are NEVER caused by a board.
Horizontal lines indicate a defective LCD panel (screen) no part except a NEW screen will fix it.
We recommend ordering by part number Always, never go off the back sticker alone, remove the part from the TV and confirm all numbers MATCH perfect.
Part number can be found on white bar-code sticker on board.
Often times there are TV models that use more than one set of parts and/or panels.
Important Message: Part number can be found on the sticker of the board or part.
Please see all of the high-res photos for details!
